Analog CCTV
CCTV has become a common security system in protecting our homes or businesses in this modern era. Hence, Lotus Action as one of the leading CCTV supplier in the industry has since been supplying a great range of reliable and innovative alarm systems Malaysia and building alarm system which is most effective in this manner. Innovative CCTV is much needed for greater protection and security to most people. Our staffs are well trained and equipped with knowledge of all the products supply by our company. We provide professional consultation on the security solutions for different purposes and functions.
HYBRID SURVEILLANCE SYSTEM
LOTUS LCIR-H4k SERIES 5-in-1 4K VIDEO CAMERAS Providing a usable video surveillance solution is our business goal. The most recent advancement to become financially feasible for small-to-medium sized businesses is the introduction of 4K into the video surveillance market for its promising outstanding image quality and details.
Lotus is offering the best true 4K CCTV surveillance system for its ultra high-definition recording capabilities, maximal color reproduction and clear viewing angle flexibility, supporting 4K display technology and artificial intelligent features.
The 4K cameras may also be connected to a network through LHVR Hybrids DVR and this DVR can IP cameras to convert into an IP video solution. This means users can start to integrate higher resolution cameras into an existing analog or IP surveillance solution. Granted, the monitor will only display the resolution it is capable of, but the scene video is recorded in the resolution of the camera.

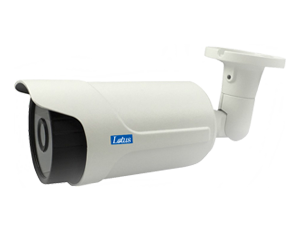

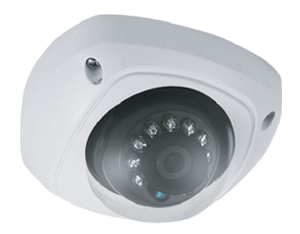

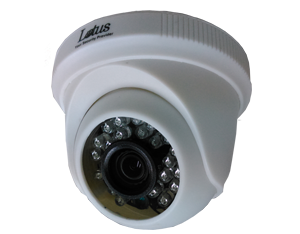

LOTUS LCIR-H SERIES HYBRID FULL HD 1080P PROFESSIONAL CAMERAS Lotus LCIR-H series is professional 4-in-1 hybrid infrared HD surveillance cameras which supports AHD, TVI, CVI, and Analog CCTV video formats that utilizes Sony CMOS image sensor to deliver high quality image with 1984（H）×1105（V), pproximately 2.2M Pixels resolution. The Progressive Scan CMOS image sensor supports 1000TV lines of high resolution in analog CCTV mode and 1984 x 1105 (1080P) resolution in HD modes. It is a newly developed solution that adopts a 2.8 µm unit pixel manufacturing technology to provide high sensitivity performance and high signal-to-noise ratio (SNR). LCIR-H series can achieve high picture quality, high resolution even in low illumination lighting environment.
Lotus LCIR-H series is a cost-effective HD surveillance cameras designed for both indoor and outdoor IR video surveillance system. With the built-in Infrared LEDs, Lotus LCIR-H series is capable of viewing up to 50 meters / 150 feet in complete darkness. It is equipped with fixed 3.6mm (options: 6mm/8mm) or varies-focal lens 2.8mm ～ 12mm that allows user to adjust field of view for different installation environment. Some of LCIR-H series adopts rugged full metal body vandal-proof IK10 housing, full sealed design provides exclusive IP66 weatherproof protection to ensure the outdoor camera can withstand extreme weather conditions for reliable and long-term operation. It comes with tri-Axis gimbals bracket that completely concealed video and power cables of outdoor camera for easy ceiling and wall mount installation. Lotus LCIR-H series is complete with external OSD navigator for switching video output format from AHD to TVI/CVI/CVBS.
Repairing, testing, adjusting cameras are hassle maintenance work for security system installers because security cameras are installed either on the ceiling or wall where they are not easy to be accessible for preventing vandalism. To ease the task without compromising security, UTC is the ideal solution. It reduces the time and eliminate hassles for viewing camera’s settings and helps adjust setting without accessing the camera directly. UTC stands for Up The Coax. It is a must new technology adopted in LCIR-H series cameras by built-in coaxial cable. The control signal will transmit through the coaxial cable. LCIR-H UTC enabled camera allows user to remotely set the camera’s OSD through its UTC integrated circuit (IC).
All Lotus LCIR-H series cameras come with OSD capability. OSD is the abbreviation of On-Screen Display. LCIR-H camera makes this integrated on-screen menu to access its functions within the camera to change that effect how LCIR-H camera processes an image. Lotus LCIR-H series cameras turn static cameras to come with OSD to enable the group of settings within the camera’s chipsets to be called upon to fix many types of technical functions such as Exposure, Auto Gain control, Iris Levels, Shutter Speed, White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection and many more to address different video issues. LCIR-H cameras are useful in situations where camera needs to point at a situation where there is a real bright area in the picture along with an extremely dark area. The image that is too dark will become a bit brighter so that it can be seen better detail in anything that was originally too dark to see. Economy cameras largely in the market come without this capability thus make cameras merely plug and play types.
PRIMARY CHARACTERISTICS ✪ IP66 for outdoor video surveillance
✪ 2.1 megapixel CMOS image sensor with high sensitivity
✪ Delivers HD images/video with 1984×1105 resolution
✪ Built-in IR-CUT filter to provide true day/night surveillance
✪ Excellent low light performance
✪ Equipped with 3MP 2.8mm ~12mm VF lens, approximate 92°~27.2° view angle
✪ Comes with 36 pieces Infra-red illuminators or 6 pieces IR arrays.
✪ IR illumination distance up to min. 15m ~80 meter max.
Lotus HD-SDI Surveillance System Lotus HD CCTV cameras use high definition serial interface (HD-SDI) technology which enables full 1080p resolution video surveillance using standard RG59 coaxial cable. Notably Lotus offers hybrid DVRs that can accommodate both types of HD and SD cameras on a single system.
LDVR-SD series DVR is a standalone HD digital video recorder that provides integrated solutions with HD-SDI and CVBS as well as that smart Central Management Software to manage DVRs with ease, and monitor DVR with 3G mobile phone or PDA phone. Equipped with easy-to-implement functions such as event alarm, email alarm notification, firmware update via internet, HDD error detection, and FTP file storage, make LDVR-SD user friendly and easy for integration surveillance solution.
There are some special considerations to be aware of when planning an HD-SDI surveillance system. These include cable type, cable distance, and compatibility with DVRs. Because HD video uses more bandwidth throughput than traditional standard-definition CCTV cameras, installers must use RG59 or better coax cable. Pre-made CCTV cables that are a thinner gauge than RG59 will not be able to transmit the video signal effectively. It is also recommended to use a high quality 95% or better copper cable. The effective distance that a video signal can transmit over RG59 cable is 100 meters without the use of an HD-SDI transmission repeater, which can extend the signal an additional 100 meters.  |
Analog HD series
| AHD (Analog High Definition) has made high definition possible in Analog CCTV System. It creates new video format while giving robust and cost-effective solution. Lotus has marched on AHD solutions for Lotus LDVR-A & LCIR-A series CCTV Systems. |
| AHD makes image signal processing integrated with transmission technology, to unique ISP-TX integrated solution. Thus, AHD is advantageous for CCTV cam- era in giving image signal processor to reduced BOM and board size. Amazingly, AHD provides various camera image sensors support and full compatibility. Utilizing with superior performance of Sony progressive scan CMOS image sensor that achieved significant improvements in the sensitivity characteristics in the near infrared light region, high picture quality is achieved by Lotus AHD cameras at the low illu- mination, as well as producing higher resolution than the existing Lotus products.  | It produces real-time uncompressed video signal and gives no delay of video feed. Lotus’s AHD cameras transmit mass data of camera video at 720p@60fps currently and 1080p@30fps in future while allowing reliable and minimal data loss over long reach as far as 500 meters using coaxial cabling to AHD DVR as receiver of video and audio. Therefore, this will give cost saving to cabling Lotus AHD CCTV application.Furthermore, it helps enhanced image processing in Auto White Balance (AWB), wide dynamic range (WDR), Defog, 3DNR. As a result, Lotus AHD camera is able to identify objects clearly enough even in the night-time shooting, not only in the visible light range, at 960p standard of 1280×960 pixels resolution. Besides, AHD platform has capacity to support multi resolution of 960H/1280H/720p now and 1080p then.  |
| Lotus ultra high resolution Indoor /Outdoor IR camera, integrated with Sony Super HAD CCD II 960H image sensor offers an ultra high 700TV Lines resolution and high S/N ratio, and provide accurate and clear picture quality for surveillance. |
 | - 1/3″ Sony Super HAD CCD II
Feature with 1/3” Sony Super HD II 960H image sensor, the number of e ective pixels in the horizontal direction of the CCD image sensor. It increases nearly 30% number of pixels of 760H (752(H) x 582(V), resulting in signi cantly enhanced picture details. - Wide Range of Auto White Balance
The Automatic White Balance provides an extensive range color temperature control that covers from 2,300′K generating natural color image without being red or blue in varying light conditions. - Ultra High 700TVL Resolution
The integrated SONY Super HAD CCD II 960H enables the camera to obtain ultra high resolutions of up to 700 TVL, and high S/N ratio, and provide accurate color and clear picture qualiity for surveillance. - Lens Shading
Lens shading eliminates dark corners on wide lens, allowing any activities to be seen clearly, even on the edge of the camera. - 2DNR (Digital Noise Reduction)
Embedded with NR (Noise Reduction) technology, produces extremely clear picture quality even under low-light condition for 24/7 surveillance.
|
Suitable Applications:
Banking Institution
Border Surveillance
Casino
City Surveillance
Education Institution
Factories
Governmental Departments
Hospitals
Hotels
Metros
Ports
Residential Buildings
Restaurants
Retails Stores
Telcos
Warehouses
Zoos
Etc
DVR Recorder
Hybrid Surveillance System
LHVR (Lotus High Definition Video Recording) Recorders comprise of 4-channel, 8-channels, 16-channels and 32-channels dedicated series to fit various applications. LHVR recorders are supportive of HD-AHD/TVI/CVI,CVBS, in addition, IP video inputs. They are based on H.264+/H.264 dual-stream video compression. LHVR recorders offer the best performance and highest quality. 16-channels and 32-channels LHVR recorders enable large capacity as much as 80TB (8 Harddisk ports for 10TB each port) to cater for long–term video retention for management purposes and are perfect for midium to large size businesses and projects which require a balance between performance and budget. 4-channel and 8-channel models are economical series recorders designed for optimum cost performance with Full HD quality assurance standard.
Lotus has crafted innovative solutions to its security video surveillance product ranges. Its hybrid intelligent video system can provide great flexibility to support both analog and IP cameras with NVMS intelligent surveillance software, SuperLive+IVS. This newest generation of LHVR recorders and LCIP IP security cameras have embedded features include virtual fence, intrusion, object abandoned and missing detection, exception detection and intrusion detection. It is a great way to capture movement versus having an overall motion detect. It saves property owners from the added costs of installing expensive equipment or the cost of having surveillance watched by 24/7 security guards. An alarm and alert sent to email will confidently notify what happen to a property is safe from intruders. Applications such as airports and train stations can monitor abandoned packages is priceless. Furthermore no burglar can get away with moving a camera or blocking its view, because the scene change feature is on alert. It improves security, simplify monitoring, and help prevent criminal activity.

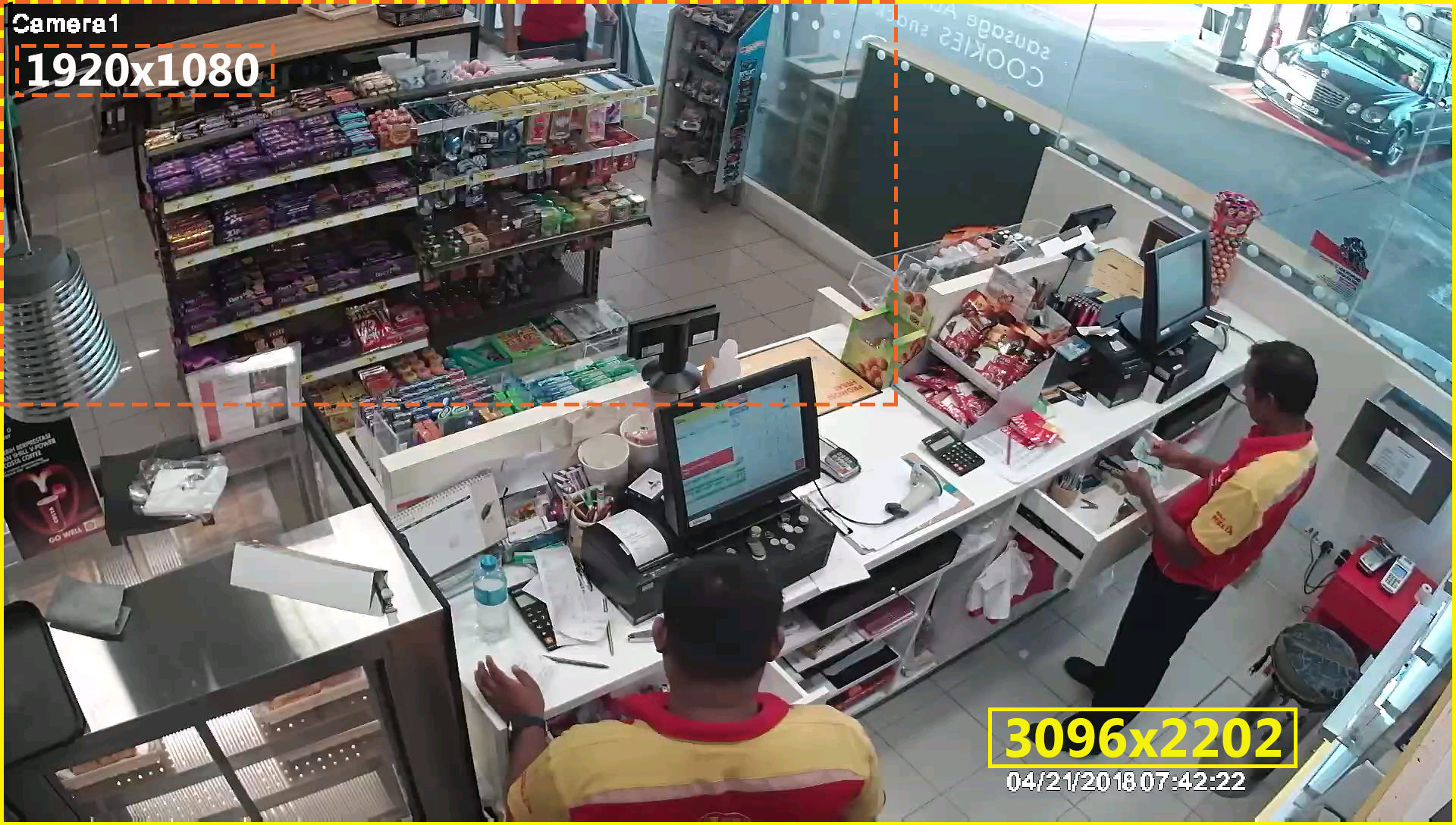

Provide ‘4K’ UHD (3840 x 2160) Experience This resolution provides 4 times as many pixels as ‘Full HD’ (1920 x 1080 or 1080p) offers. Such a large increased number of pixels can provide an impressive pixel density. When using larger dsiplay monitor, it will not adversely affect the clarity and resolution of full screen videos or images. Picture elements scale very cleanly, increasing in size but remaining sharp and pleasing on the eyes of users.
H.265, new power of video compression standard HEVC has revolutionized how video data is displayed, either remotely or on local site monitor in the surveillance industry. Our LHVR J & K series have kept abreast of H.265 technology and support this new format to fulfill the intense market need. They have bit reduction inversely proportional to the video image quality, where HEVC/H.265 presented a bit reduction of 52% at 480p and 64% at 4K UHD when compared to H.264 in older models. As such, besides this outstanding bit reduction, when compared to H.264, LHVR J & K series deliver a significantly better visual quality, when compressed to the same file size or bitrate of older models.
IVS capable Smarter DVR and camera IVS ( Intelligent Video Surveillance System) video codec algorithms is the capability to see and process visual information similarly to humans. The Intelligent Video will automatic confirm a alarm after analysing from the target first appears until the target is confirmed. Users can manually or automatic activate predefined subsequent actions to alarms such as activate record, SD record, snapshot, notifications by email, FTP, and alarm sounds according to alarm trigger options.
i. Configure rules for alarms
ii. View intelligent alarms events
iii. View log for line crossing alarms
iv. Record and playback line crossing events
v. Notifications of alarm
The whole video surveillance system can now record with amazing details and contain the Intelligent Video Surveillance System.
Virtual Fence This feature is to draw rules and draw warning line in the image according to the actual needs so that it triggers alarm when the target is crossing the warning line according to the set movement direction such as point A to point B, point B to A and bidirectional. This function is applicable to the scene where the targets are disperse and the moving directions of targets are sensitive to security breach such as carparks, perimeter without guards, etc.
Object Abandoned and Missing Detection The relevant alarms will be triggered if there are items left in the pre-defined alarm area. The relevant alarms will be triggered if there are items missing in the pre-defined alarm area. The alarm area should be a closed area in the image where “suspicious” object could be a potential threat to security.
Exception Detection Scene change detection is capable of giving relevant alarms triggering if the scene of the monitor video has changed. Video blur detection is capable of relevant alarms triggering if the monitor detection is capable of relevant alarms triggering if video is blurry. Video cast detection detection is capable of relevant alarms triggering if color cast happens to the monitor video.
Intrusion Detection Intrusion Detection is when there is any object entering or leaving the region that has been drawn an irregular shape, it will trigger alarms when crossing the region perimeter, support enter, leave and enter and leave three direction selection. It can activate record, snapshot and alarm according to the judgment result.
VCA capable Mobile Apps Mobile phone can add device that feeds VCA footage
i. Push function
ii. Set intelligent alarm event in device with notification function
iii. Set intelligent alarm event enables message subscription
iv. Set intelligent alarm event to trigger a push message
v. View notified push messages
NVMS1000
Network Video Surveillance Management Software
NVMS-1000 is a monitoring client which is specially designed to power network video surveillance for LHVR recorders. After the network video monitoring system is well built, the super administrator can control the video input signal devices, such as cameras, domes, PTZ, etc, to achieve live monitor, video record and backup by configuring the video parameters and viewing the live in the control panel. Users can choose the menu to control video surveillance system in the control panel. The main functions of the control panel include live view, playback, E-map, device management, group and scheme settings, user account and permission, local log, basic configuration and alarm management.
Main Features- Basic function: Includes live preview, dwell preview, system record, playback and download, e-map, device management, user management, log search, alarm management etc. Brand new user interface: Main panel as the unified entry, clearly classifies the main functions. Each function adopts dynamic Tab label for easy operation. Preview window has embedded toolbar and right-clicking menu; adopts accordion tree view control.
- Monitor management: System adopts resource tree to manage the monitoring points. And manage the devices according to area hiberarchy.
- Electronic map: Intuitively display the information of the monitor points’ deploy situation , alarm status etc.
- Configuration management: Support device configuration locally and remotely. User can use the software to remotely configure the record schedule, image setting, alarm output etc. for the devices,
- User management: User account types differentiate as Administrator, advanced user, common user. Administrator has the highest authority. The system supports account creating, changing and deleting, account right configuring, User account information checking etc. Log management: User can search log information by log type( e.g. Alarm type, operation type etc.)
- Data backup: To avoid data loss, this software supports exporting system configuration information for backup. And backup recording data according to time, event, recording type.
- Multiple languages: Support simplified Chinese, traditional Chinese, English, Russian, Spanish, Portuguese, Turkish, Polish, Bulgarian, Italian, Czech etc.
- Good compatibility: Support Win7, Win8 32 bit and 64 bit OS.
SuperLive Plus
LHVR recorders can be connected to any network that is camera enabled using IP address to its dedicated digital mobile surveillance software,
SuperLive Plus. SuperLive Plus is a specially developed monitoring software for for Windows OS, MAC or Android platform. Users can view real time video streaming, control operations on the mobile phones. Users can watch footage of specific different items, checking the footage they want to watch easily by scrolling on the specific timeline and watch only the parts that they desire. It has also the PTZ control that allows both movements be it manual or automatic. This app also allows users to zoom and tilt camera directions to focus on the specific item of interests. It is featured with remote alarm push notification which sends users an instant text message if there is alarm event triggered. It also supports P2P connection and makes mobile phone connection setup to LHVR recorders with ease. It can support 100 devices to its Server List.
Lotus HD-SDI Surveillance System Lotus HD CCTV cameras use high definition serial interface (HD-SDI) technology which enables full 1080p resolution video surveillance using standard RG59 coaxial cable. LDVR-SD series DVR is a standalone HD digital video recorder that provides integrated solutions with HD-SDI and CVBS, as well as that smart Central Management Software to manage DVRs with ease, and monitor DVR with 3G mobile phone or PDA phone. Equipped with easy-to-implement functions such as event alarm. email alarm notification, firmwawre update via internet, HDD error detection, and FTP file storage, make LDVR-SD user friendly and easy for integration surveillance solution. Notably Lotus offers hybrid DVRs that can accommodate both types of HD and SD cameras on a single system.
There are some special considerations to be aware of when planning an HD-SDI surveillance system. These include cable type, cable distance, and compatibility with DVRs. Because HD video uses more bandwidth throughput than traditional standard-definition CCTV cameras, installers must use RG59 or better coax cable. Pre-made CCTV cables that are a thinner gauge than RG59 will not be able to transmit the video signal effectively. It is also recommended to use a high quality 95% or better copper cable. The effective distance that a video signal can transmit over RG59 cable is 100 meters without the use of an HD-SDI transmission repeater, which can extend the signal an additional 100 meters. |
Analog HD series
| AHD (Analog High Definition) has made high definition possible in Analog CCTV System. It creates new
video format using unique alternative transmission solution while giving robust and cost-effective HD data
transmission. Lotus has marched on AHD solutions for Lotus LDVR-A & LCIR-A series CCTV Systems.Lotus LDVR-A series AHD DVRs is based on AHD protocol, using the analog of coaxial cable transmission line by line scan highdefinition video. LVDR-A is able to use same transmission cable with conventional one for COMET(SD level) and AHD 1.0
(HD level), and yet they provide the superior and reliably image quality by minimizing the interference when separating Y and C.Therefore, the original wiring system, on the basis of the standard definition can be easily and readily upgrade to HD. |
| LDVR-A is using AHD codec to encode and record the video footage from LCIR-A cameras. LDVR-A DVR can support 4/8/16 channel Hybrid AHD and or 960H cameras and max 1/4/8 channel audio inputs respectively. They can work with LCIR-A series 1.3 megapixel AHD cameras and others, deliver high quality images. LDVR-A DVR can support 2 hard drives of 4TB each drive and customer can upgrade to models with 4 hard drives options. | LDVR-A uses originally used for the analog system, it is a simple matter to just replace the old camera and the DVR to obtain Full HD resolution. LDVR-A DVR can diagnose HDD condition when power on the DVRs. If any error is detected, users can fix the problem at once. |
 |
| LDVR418 is new standalone digital video recorder (DVR) for use in residential and retail surveillance installations.960H represents the number of horizontal pixels in the CCD image sensor and provides a 30% increase in resolution in comparison to D1. The greater the resolution, the higher the de nition of the video image. 960H DVR is a must to complement the 960H camera to realize the high resolution video.
This DVR supports up to 3TB HDD for recording time. It is the most economical DVR ideal for retail and residential user applications. |
| LDVR401F is intelligent 960H digital video recorder with face detection algorithm. It can analyse video signal and identify faces in images but ignore other details. It detects, keeps track of faces and saves the face images of the best quality of the whole tracking process. It enables alarm triggering, email, push alarm notifications, etc.LDVR401F also supports multiplex operation including record, live view, playback, backup, control, remote access. Besides, HDD error detection it equipped with easy-to-implement functions locally or via internet, making it user friendly surveillance solution. |
Network IP Surveilance
Lotus network cameras (LCIP series) are capable of delivering megapixel resolutions to offer high video quality and color fidelity but low latency and bandwidth optimization for various segments video surveillance applications in extreme outdoor environments.
They are designed for a wide range of harsh weather conditions, Lotus’s IP cameras can perform reliably from -20 to 55°C, and offer many advanced functions, such IP67 water resistance, PoE, IR illuminator, WDR (wide dynamic range), Day/night to enhance image quality for applications in areas with low visibility. Added advanced functions are P2P connectivity, equipped to access 3G service, Wifi connection to internet access, etc.
They are deigned with bandwidth optimisation and storage efficiency in mind for the surveillance network.
Lotus network recorder (LNVR series) can be deployed in different topology to achieve maximum performance and flexibility.
We supply and serve to guide you for best practices in design, selection, and deployment of video surveillance systems, as well as identifying the minimum requirements for infrastructure devices and components.
Suitable Applications:- Banking Institution
- Border Surveillance
- Casino
- City Surveillance
- Education Institution
- Factories
- Governmental Departments
- Hospitals
- Hotels
- Metros
- Ports
- Residential Buildings
- Restaurants
- Retails Stores
- Telcos
- Warehouses
- Zoos
- Etc
